Overview

Once you have created your Fiserv (US Customers & Canada Stored Payments ONLY) or Stripe (Non-US Customers and Canada POS) account, the following steps cover how to complete the integration in Redpoint.


Initial Integration (Completed by RPHQ)

Fiserv

1. Add Credit Card as a Payment Source

This must be done in each facility if multi-gym!

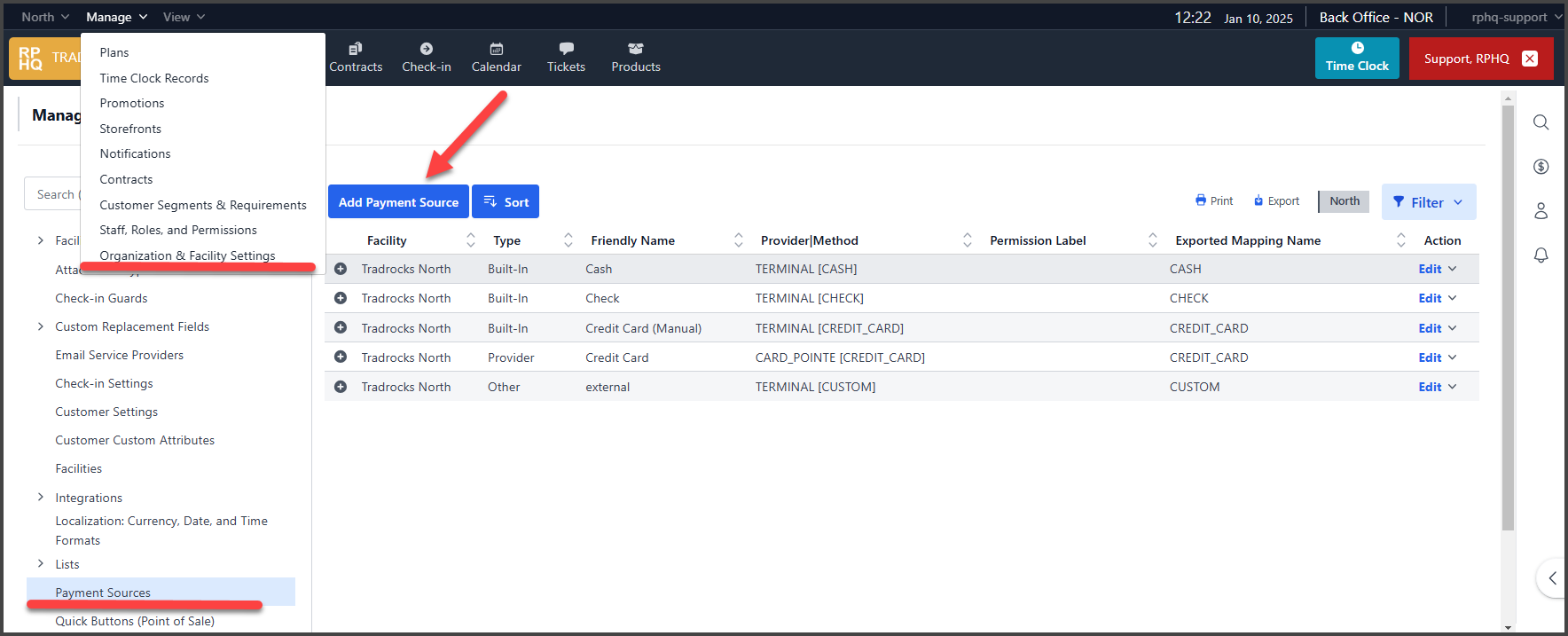

• Go to Manage > Organization & Facility Settings > Payment Sources

• Click Add Payment Source

• Select CardConnect Integration

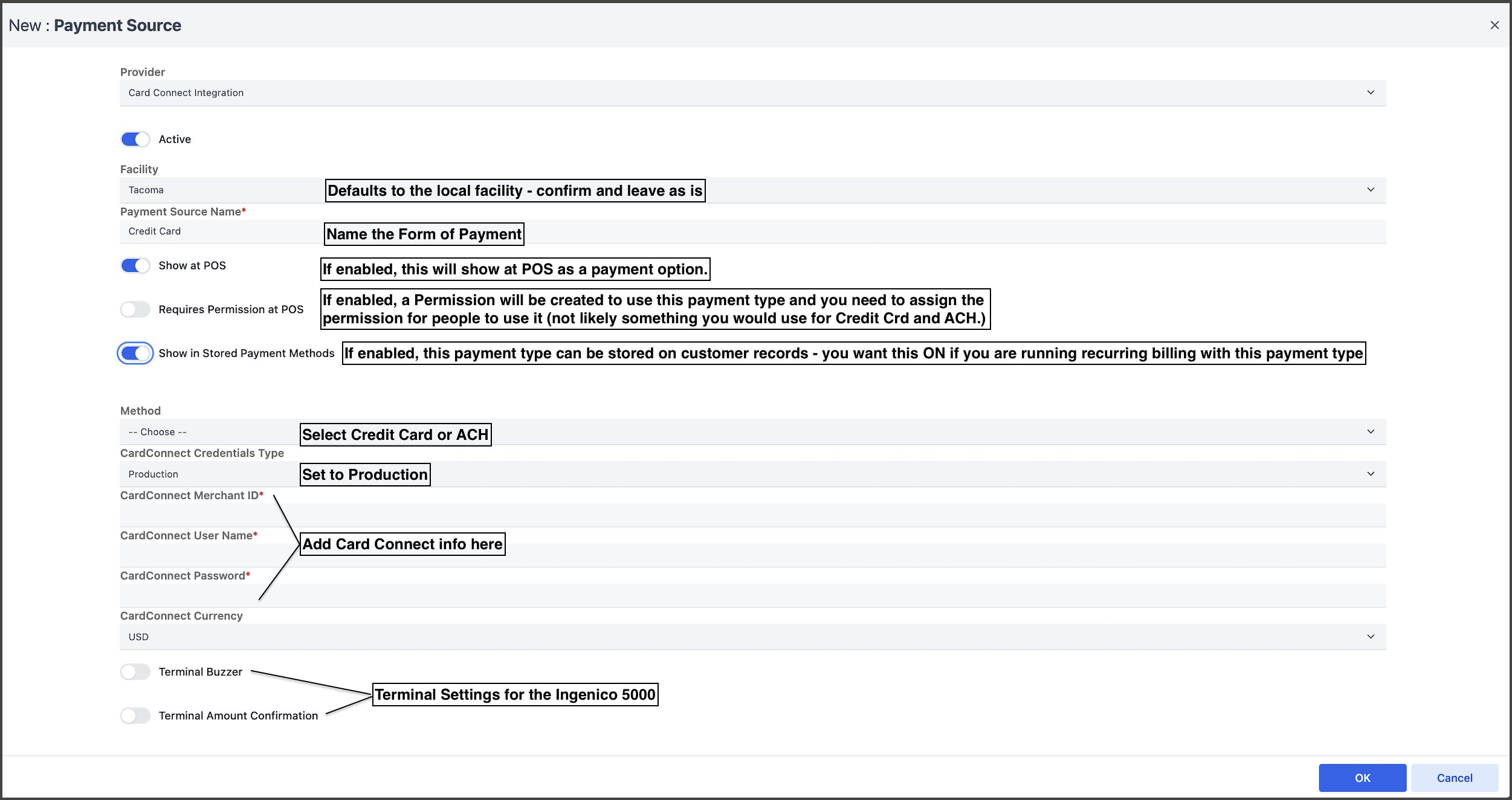

  Provider: Card Connect Integration

Active: must be on to enable this pay method

Facility: should default to the local facility.  Confirm it is correct and do not change.

Payment Source Name: “Credit Card” but can technically be set to whatever the facility wants.  This is the name that will show in POS and in the Customer Portal for stored payments

Show at POS: must be ON to accept credit cards at the Front Desk Point of Sale

Requires Permission at POS: optional setting that should generally be OFF, which would enable all staff with POS access to select this form of payment.  If turned on, then a permission is required for the staff to access this payment type - only those with access can then select this as a form of payment (unlikely you’d want this for credit card payments).

Show in Stored Payment Methods: This should be ON unless you do not want credit cards to be stored on customer records (i.e. maybe you only bill through ACH and don’t accept credit cards for recurring billing)

Method: Credit Card

Card Connect Credentials Type: defaults to Production - leave as is

CardConnect Merchant ID, Username, PW fields: the clients account info goes here.

CardConnect Currency: USD for US dollars

Terminal Settings: Buzzer and Amount Confirmation are both optional.  Buzzer makes a loud buzz when payment is completed, and Amount Confirmation forces the customer to accept the amount on the terminal before adding their card


1a. Add ACH/Direct Debit as a Payment Source (US ONLY, if selected)

This must be done in each facility if multi-gym!

• Go to Manage > Organization & Facility Settings > Payment Sources

• Click Add Payment Source

• Select CardConnect Integration
  Provider: Card Connect Integration

Active: must be on to enable this pay method

Facility: should default to the local facility.  Confirm it is correct and do not change.

Payment Source Name: “ACH” but can technically be set to whatever the facility wants.  This is the name that will show in POS and in the Customer Portal for stored payments

Show at POS: set to OFF as direct bank account debit is not something you will use via Point of Sale. Invoices added on account at POS can be billed to ACH.

Show in Stored Payment Methods: This should be ON unless you do not want ACH to be stored on customer records, in which case you likely do not need to add this payment method.

Method: Direct Debit/ACH

Card Connect Credentials Type: defaults to Production - leave as is

CardConnect Merchant ID, Username, PW fields: the clients account info goes here.

CardConnect Currency: USD for US dollars

Terminal Settings: Not applicable since this type is not used at POS.

Stripe (Complete with RPHQ)

Canadian Customers - you can use Fiserv for stored payments and Stripe for POS.

International Customers - use Stripe for BOTH Stored Payments and POS


1. Create a Stripe Standard account and let RPHQ know when done

2. Ensure you have the following Address fields set up in Manage > Organization & Facility Settings > Facility:[location] > General.


3. RPHQ will send you a link to complete the connection.

4. Once you have logged into the link provided by RPHQ, complete the following in
   Manage > Organization & Facility Settings > Payment Sources.  Filter to complete for each location.

RPHQ Pre-Account Set up (pending credentials)

• Redpoint will enable Stripe in View > System > Ops Settings - refresh!
• Go to Manage > Org & Facility Settings > Stripe Integration
• General menu > address field.
• Payment Sources > Add payment type



Additional Configuration (all processors)

2. Add to Storefront Facility Settings

This must be done in each facility if multi-gym!

• Manage > Organization & Facility Settings > Facility Menu > Storefront Facility Settings

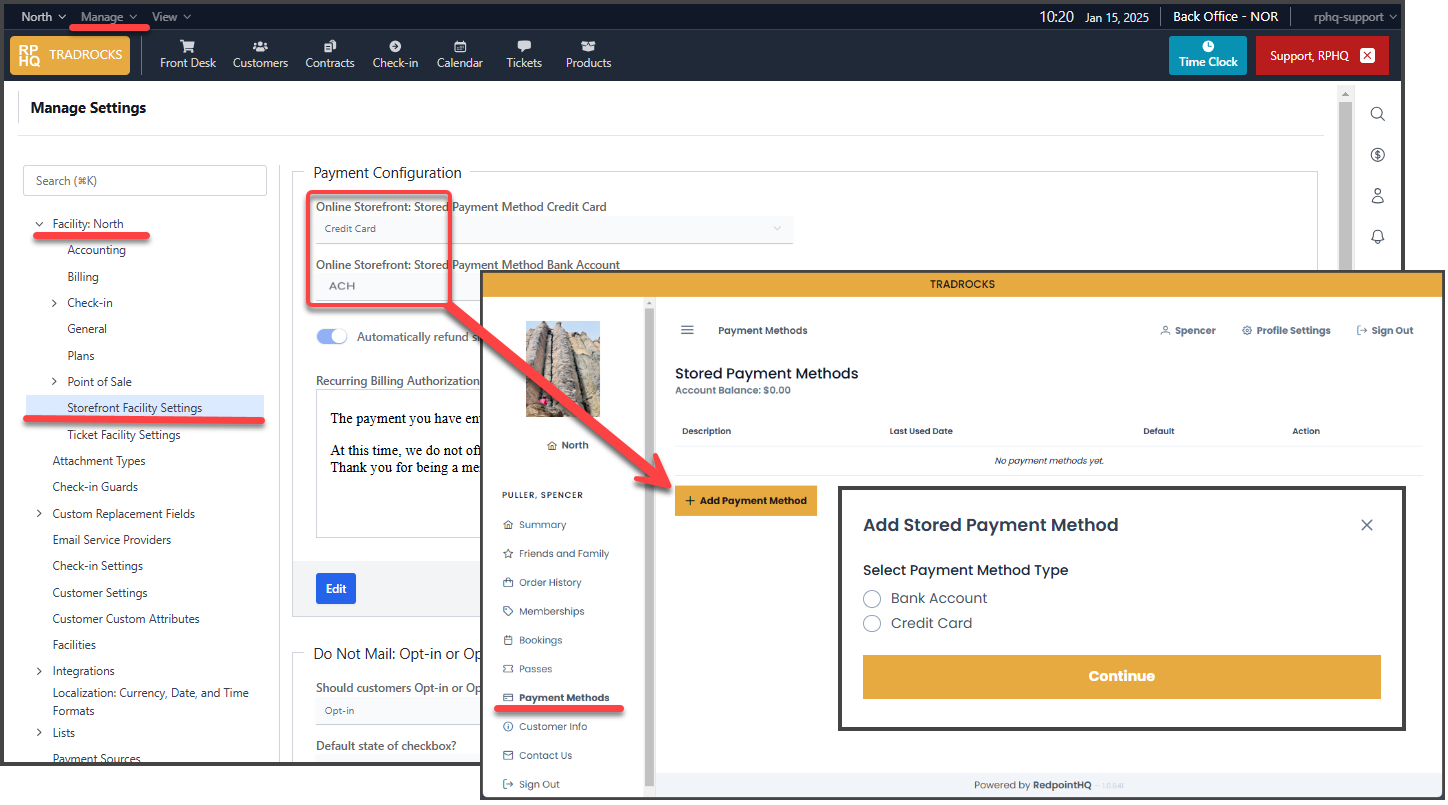

• This will allow customers to add Payment Methods via the Customer Portal, Online Storefront: Stored Payment Method Credit Card & Bank Account must be set up here.

3. Add Your Recurring Billing Authorization Text & Default Refund Method

This must be done in each facility if multi-gym!

Go to Manage > Organization & Facility Settings > Facility Menu > Storefront Facility Settings

Recurring Billing Authorization text is presented to the customer when they are purchasing a contract with recurring billing.

PLEASE NOTE: this text is NOT duplicated on the pdf document created (if the contract creates an attachment per the settings in the Plan > Big Edit > General Tab).  If you want this text duplicated in the contract signed by the customer, be sure to add it on the Documents configuration spoke for the plan.

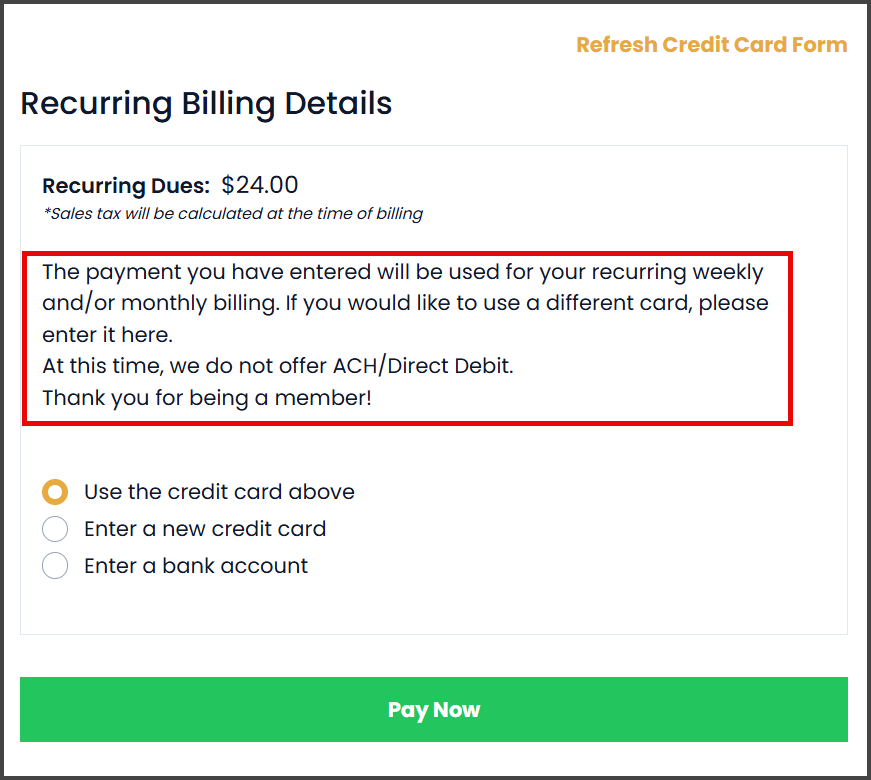

• Here is how it is displayed to the customer, and appears at the end after they have entered a payment method for the total due today.

Above the text is a toggle: Automatically refund simple integrated payments when canceling contracts.  This controls the default setting for how a facility handles refunds through the storefront, where a customer cancels and is issued a refund.

• Off means any refund is issued as a credit in Redpoint
• On means any refund is issued as a refund back to the pay method used.

IMPORTANT: This default refund setting can be set at the Plan level as well in the Cancellation configuration spoke. There you can follow the facility default, specifically refund, or specifically credit.

4. Add Credit Card Payment Source to the Storefront Register

This must be done in each facility if multi-gym!


This must be done for payments to be accepted through your storefront.

• Manage > Org & Facility Settings > Facility:[Name] > Point of Sale > Registers
• Edit the Storefront register > add Payment source as Credit Card/Stripe
• Set the option to use Gift Card and Store Credit
• Do not edit the back office register.  You do NOT need to add the payment source here


5. Sort Payment Sources as shown in POS

In Manage > Organization & Facility Settings > Payment Sources, you can control the order of payment sources as displayed at POS. Click Sort on this page and drag and drop to reorder Payment Sources.

• Cash and Check are built in options.  Make inactive if not using.

• Additional Custom Payment Sources can be created if needed, and they can be pin gated, requiring explicit permission to use that payment source.

• Gift Card will always be last on the list in the Payment window for POS and cannot be sorted.

6. Connecting Credit Card Terminals to the Network

Stripe (International)

See HERE for info on pairing the Stripe WisePOSe card readers

IMPORTANT: If your Card Readers are currently in use with your existing software, DO NOT PAIR UNTIL YOUR GO LIVE DATE.  Pairing before your Redpoint Go Live date will break its connection to your existing software

Fiserv (US)

Credit Card Terminals are networked and do not have a wired connection to the computer.  Connection to the register is done in step 6 below.

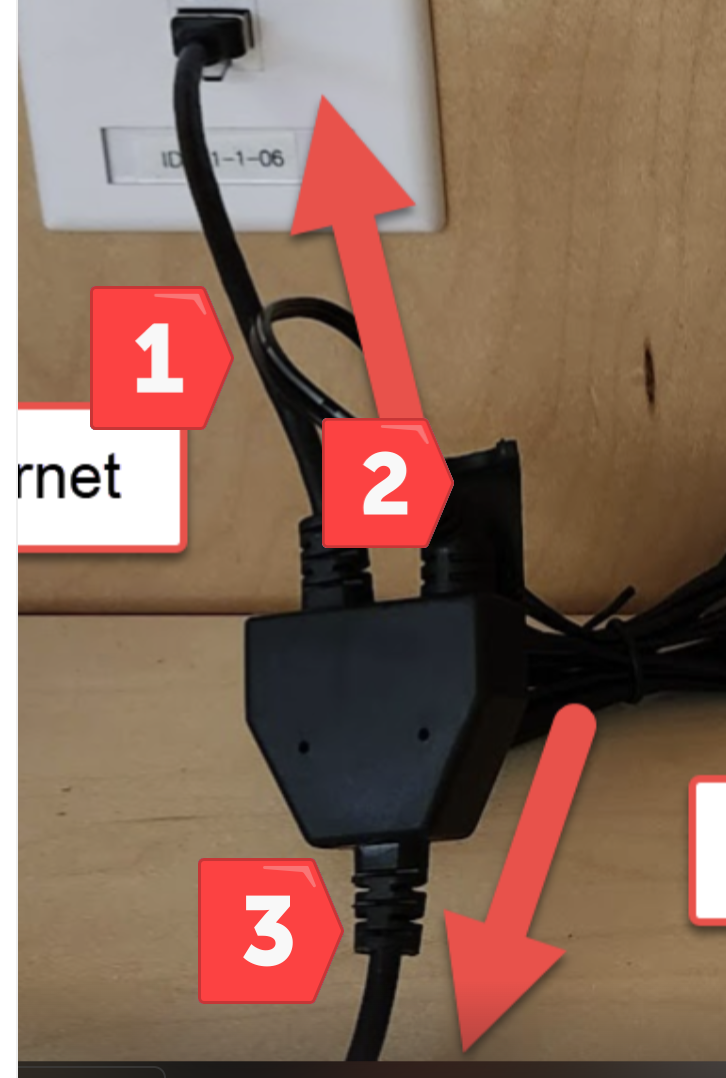

Pictured is the cable from the Lane 3000.

1. Connect to Ethernet port

2. Power cable - plug it in :)

3. This connects back to the Credit Card Terminal.

7. Assign the Credit Card Terminals to your Registers

--> CLICK HERE for information on creating your Registers and Seats first!

Assign credit card terminals to your registers:

• Go to Manage > Organization & Facility Settings > Facility > Point of Sale > Registers

• Click Edit to apply a terminal to that register.

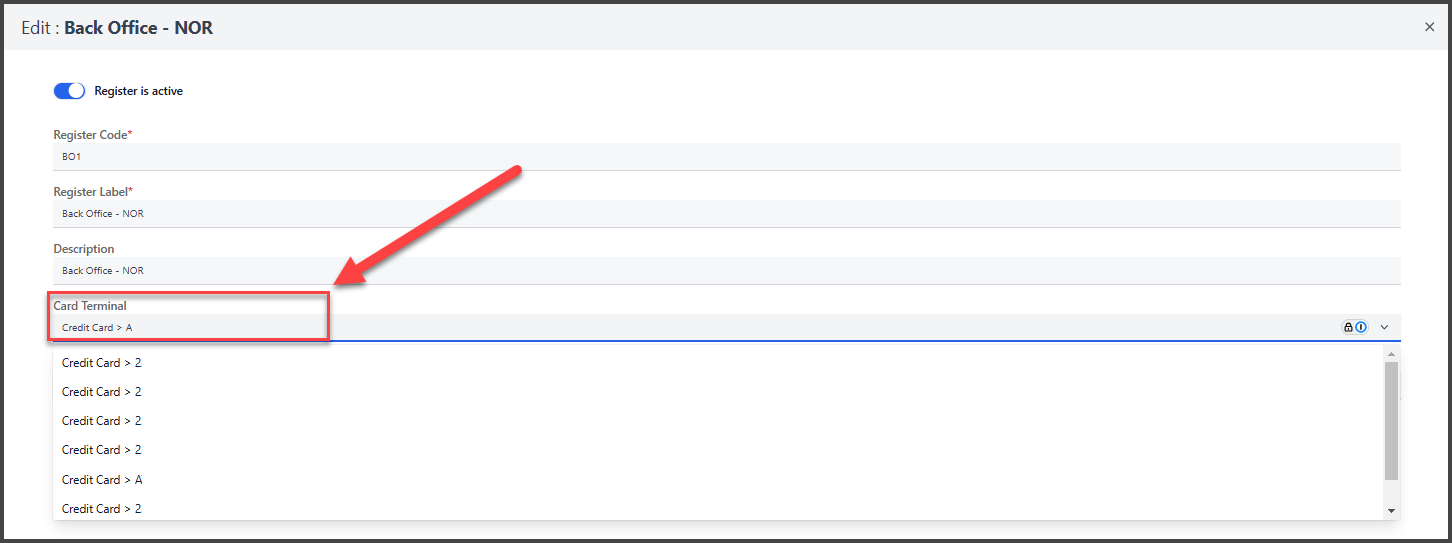

• The Card Terminal pulldown menu in Register Settings is populated with the terminal device numbers tied to your CardPointe account.  Changes to this list must be made via your CardPointe account. If any devices are not showing


  • You can apply a friendly name to your terminals in Manage > Organization & Facility Settings > Payment Methods > Expand the Credit Card Payment Method and your devices should be showing.


  • Make sure you assign registers to the correct workstation Seat!


• If you don't see the terminals here, contact Redpoint.

8. Run a Test Transaction with Credit Card Terminal

Complete a Credit Card Transaction at the Register

• In the Front Desk Module, add a client to the transaction (or anonymous)
• Add a low value item like a snack or beverage.
• Click Pay Now to get to the Tender window
• Select Credit Card and set amount to put on card.
• Click Complete Payment to activate terminal and take payment.
• Once done, the option to print a receipt will pop up.

Note: Split payments are allowed with different payment methods but charges cannot be split between two credit cards. Workaround is to invoice the purchase to the customer, then use Make a Payment to collect an amount which creates a credit on their account, then make remaining payment with a different card.

Void the Test Transaction

• Go to POS History and find the transaction on the invoices page.
• The Status will be Open as the credit card has not settled yet.

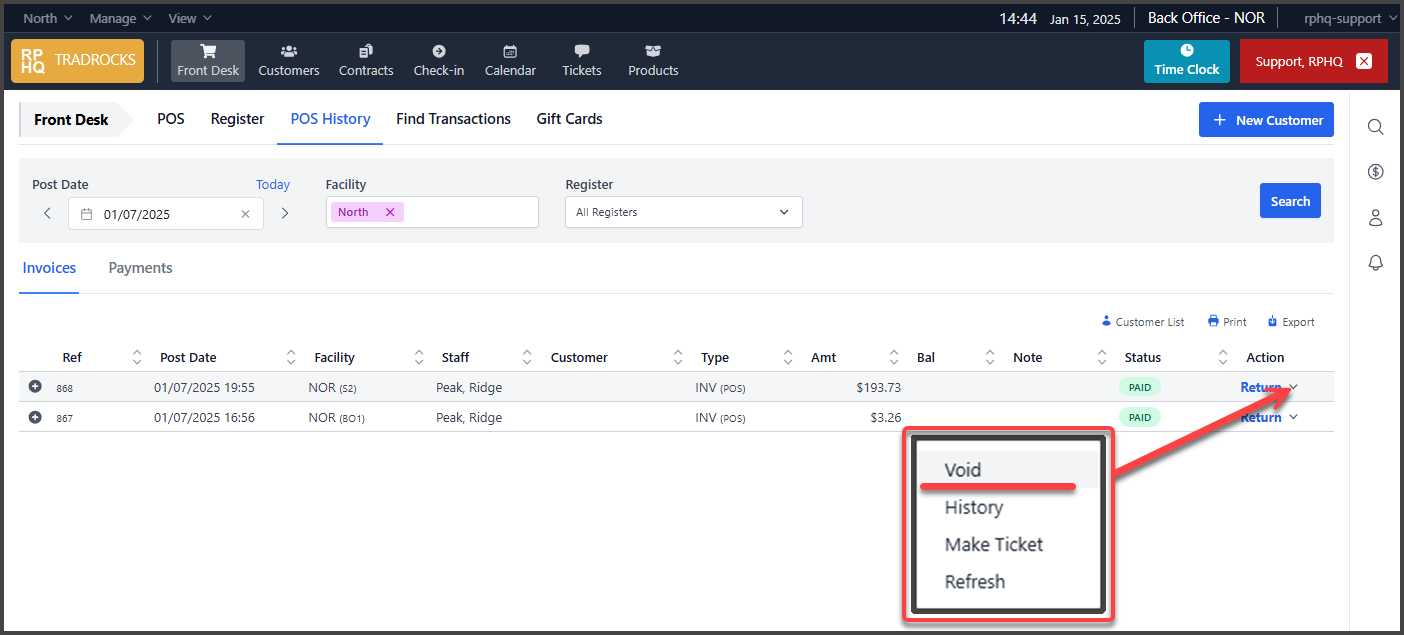

• Click the small arrow next to Return and select Void.  Prompt will ask if you want to void the associated payment - YES to void both invoice and payment.

• Once done, the Voided transaction be greyed out with all the text in the row now strikethrough, and the Action column will reflect ‘Voided’

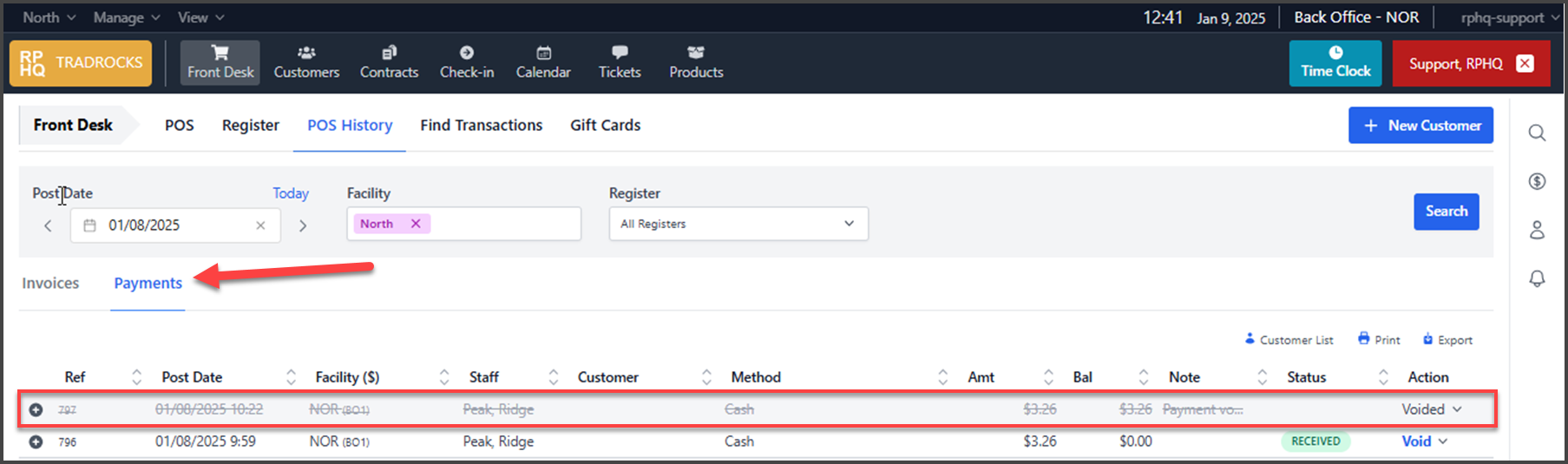

• Go to the payments tab on this page to double check that the payment is also voided.  IF IT IS NOT, void the payment as well.  The payment is the thing that will actually charge the card.

9. Run a Test Transaction on your storefront then refund it to your card
